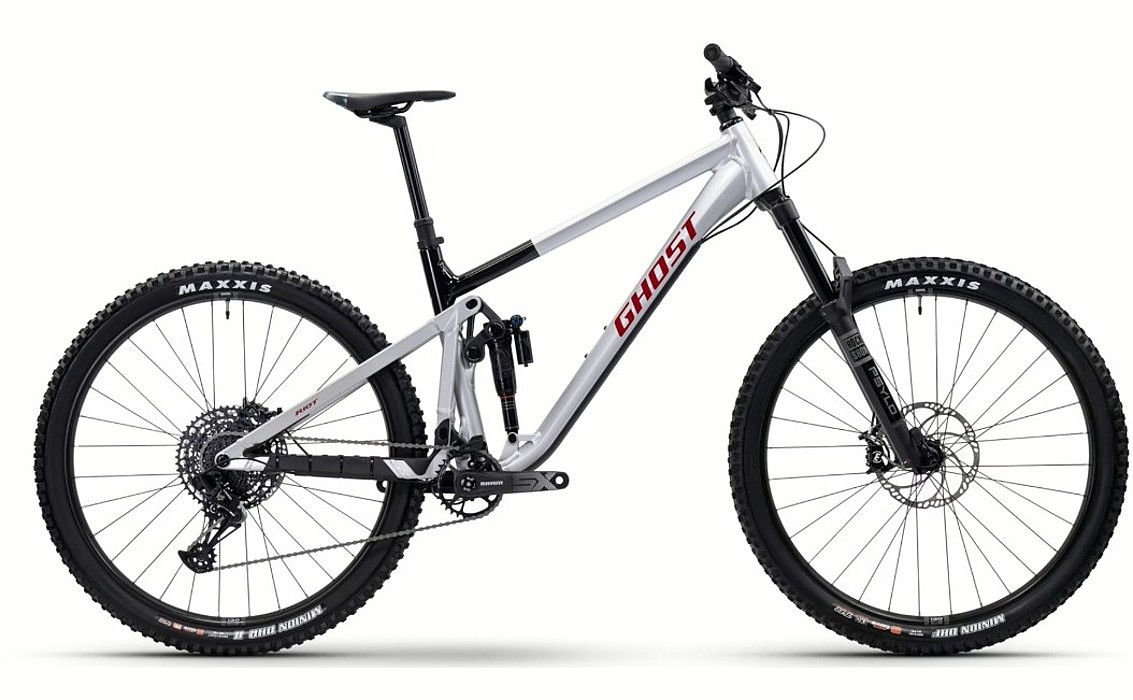

bicycle Ghost Riot AM 29" - Grey Misty/Black

bicycle Ghost Riot AM 29" - Grey Misty/Black
In stock

2186.51 EUR

Manufacturer’s recommended price: 3011.76 EUR

Select size
  • L (178-189cm) in stock

Every Riot version comes with sophisticated details that take the riding experience to the next level. These include the Tractionlink linkage system for optimal traction and suspension, a rigid, one-piece rear end, and the VPP (Virtual Pivot Point) concept, which provides more responsive response and better support in the middle of the stroke. The Virtual Pivot Point (VPP) suspension design uses a linkage system that creates a “virtual” pivot point that moves during suspension compression, optimizing rear wheel travel and pedaling efficiency. Unlike single-pivot designs, VPP allows the rear wheel to initially follow an upward and backward path, improving obstacle clearance, shock absorption and traction. This design increases stability and control in off-road conditions. An upright seatpost, lowered fork and longer chainstays are the main features of the state-of-the-art geometry, which is based on Ghost’s SUPERFIT® algorithm, which determines the optimal lengths of each frame tube depending on the rider’s height.

  • 2 categories: AM 160 mm/150 mm /Trail 140 mm/140 mm
  • perfectly balanced aluminum frame

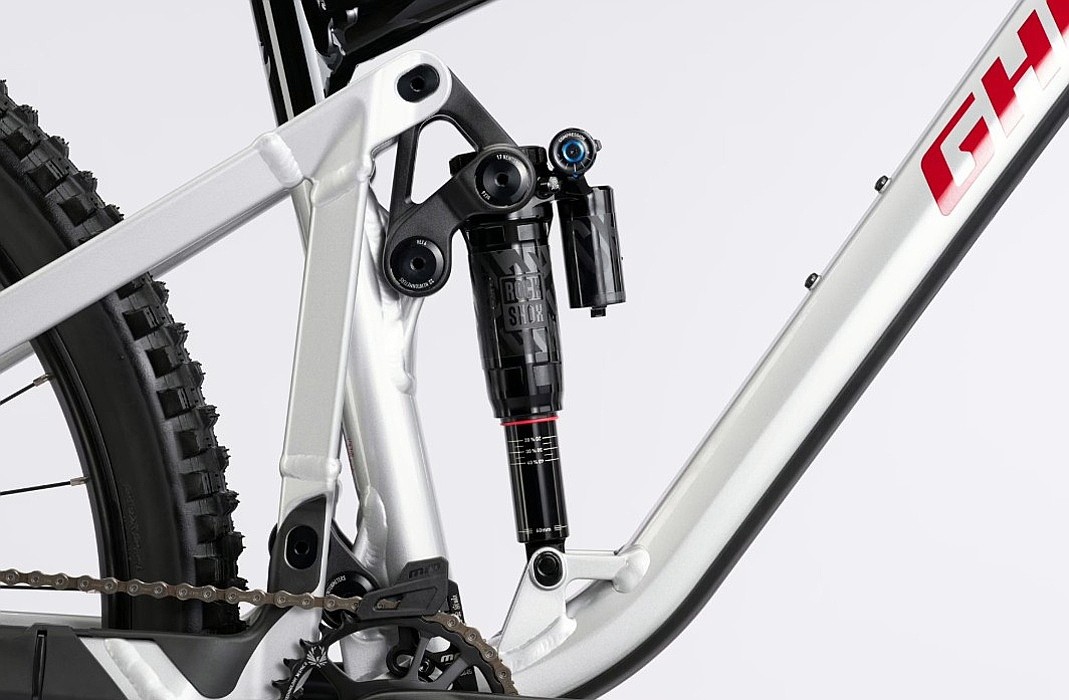

  • super-sensitive Traction Link® (Virtual Pivot) suspension
  • one-piece aluminum rear end with maximum torsional rigidity
  • SUPERFIT® geometry
  • low center of gravity
  • identical dimensions of all pivots
  • one-piece rocker arms with maximum rigidity
  • cabling hidden under the protective cover of the down tube
  • integrated protection along the entire length of the chainstay

    Technical parameters

  • year: 2025

  • wheel size: 29“
  • material: aluminum

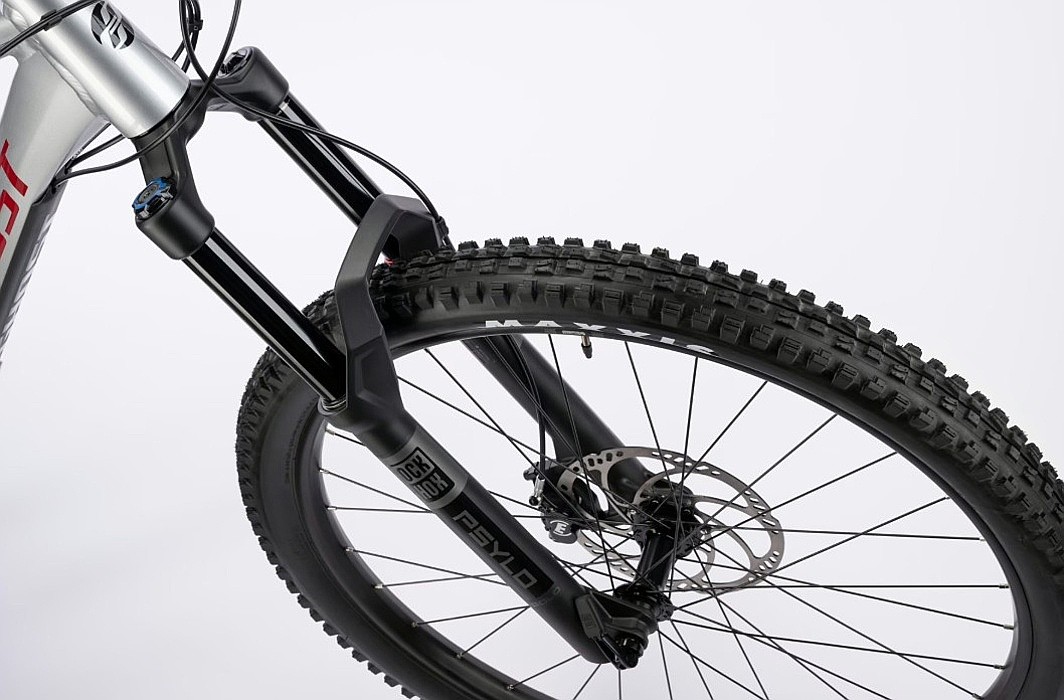

  • fork: RockShox Psyl Gold RC, Travel: 160mm, aluminum shaft 1 1/8" - 1 1/2" tapered, 15 x 110 mm Boost thru axle
  • front travel: 160 mm
  • shock: RockShox Super Deluxe Select+ RCT 140 mm
  • rear travel: 140 mm
  • headset: Acros Blocklock 135° Tapered Semi-Int.
  • derailleur: Sram NX Eagle 12-S
  • shifting: Sram NX Eagle Single Click, Trigger shifter
  • speeds: 1x12
  • cassette: Sram PG-1230 11-50T
  • chain: SRAM SX EAGLE
  • crankset: SRAM SX Eagle 32T
  • brakes: Magura MT5 203 mm
  • brake levers: Magura MT5 HC-lever, aluminum
  • front hub: Shimano HB-TC500-15-B 15x110 mm
  • rear hub: Shimano FH-TC500-HM-B 12x148 mm
  • rims: WTB ST i30 TCS 2.0 29"
  • tyres: Maxxis Minion DHF, 63-622 / Maxxis Minion DHR II 3C MaxxTerra Exo+, 62-622
  • Spoke: DT Swiss FACTORY 2.0
  • Saddle: Fizik Terra Alpaca X5
  • Stem: GHOST MTB Dia. 31.8 mm

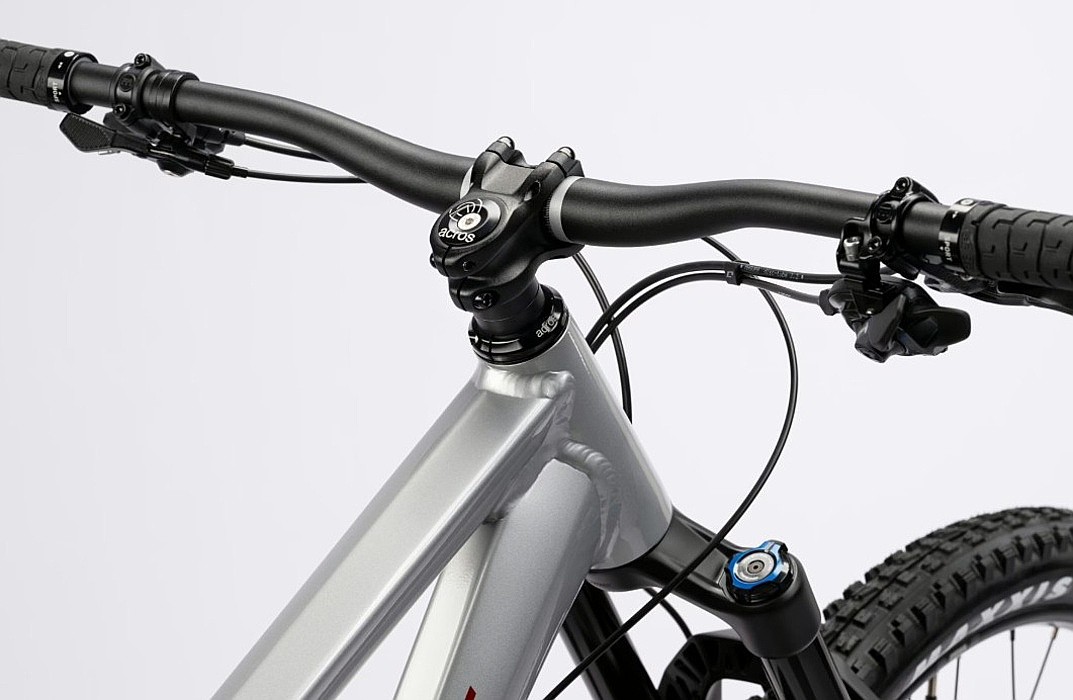

  • Handlebar: GHOST MTB Dia. 31.8mm 800/15 mm
  • Grips: Switch Components Kaleido
  • Pedals: VP VPE-527
  • Bottom axle: Sram DUB, BSA 73
  • Load capacity (including wheel): 120 kg
  • The manufacturer reserves the right to change or improve the design and components without prior notice.
